Make retrieval
observable

01. The advanced-RAG mindset

The question is no longer “Does RAG work?” It is “Why did this query retrieve these chunks rather than the ones that contain the answer?” Two failures can look identical in the final response:

Debug in this order: stored text → retrieved Sources → tool calls → final answer.

Replacing an 8B model with a 70B model cannot repair a passage the retriever never supplied. It may only produce a more fluent answer from the same wrong evidence.

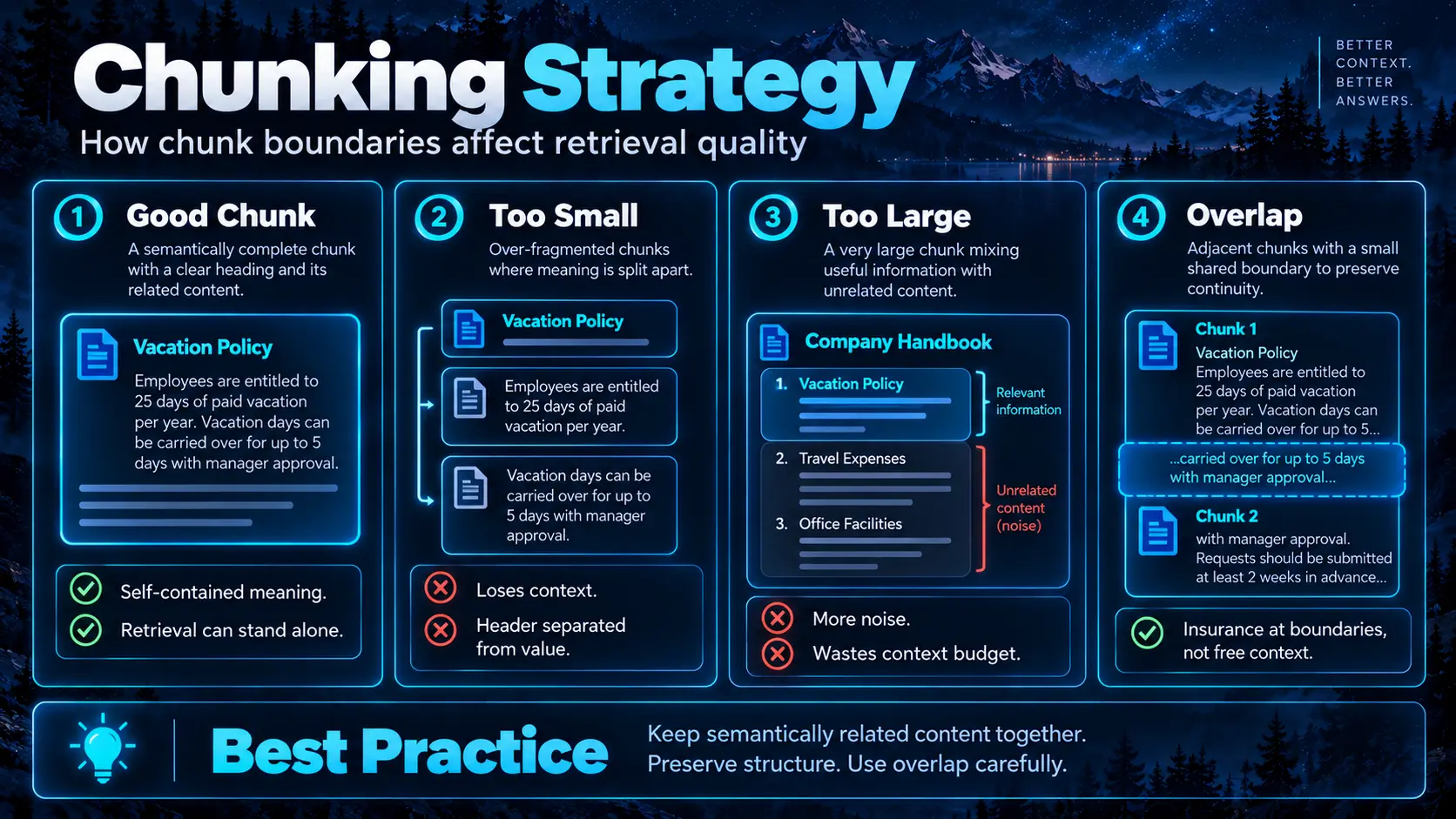

02. Chunking strategy is the foundation

Enlarge illustration ↗

Chunking decides which information should be retrievable together. A good chunk retains a meaningful unit: a paragraph with its heading, a definition with its explanation, a table row with its column labels or several procedure steps that depend on each other.

Too small

If one chunk contains “30 days” while another contains the heading “Notice period,” the number may be retrieved without enough meaning to answer safely.

Too large

If a two-line answer shares a chunk with three pages of unrelated text, retrieval may technically succeed while attention and context are wasted.

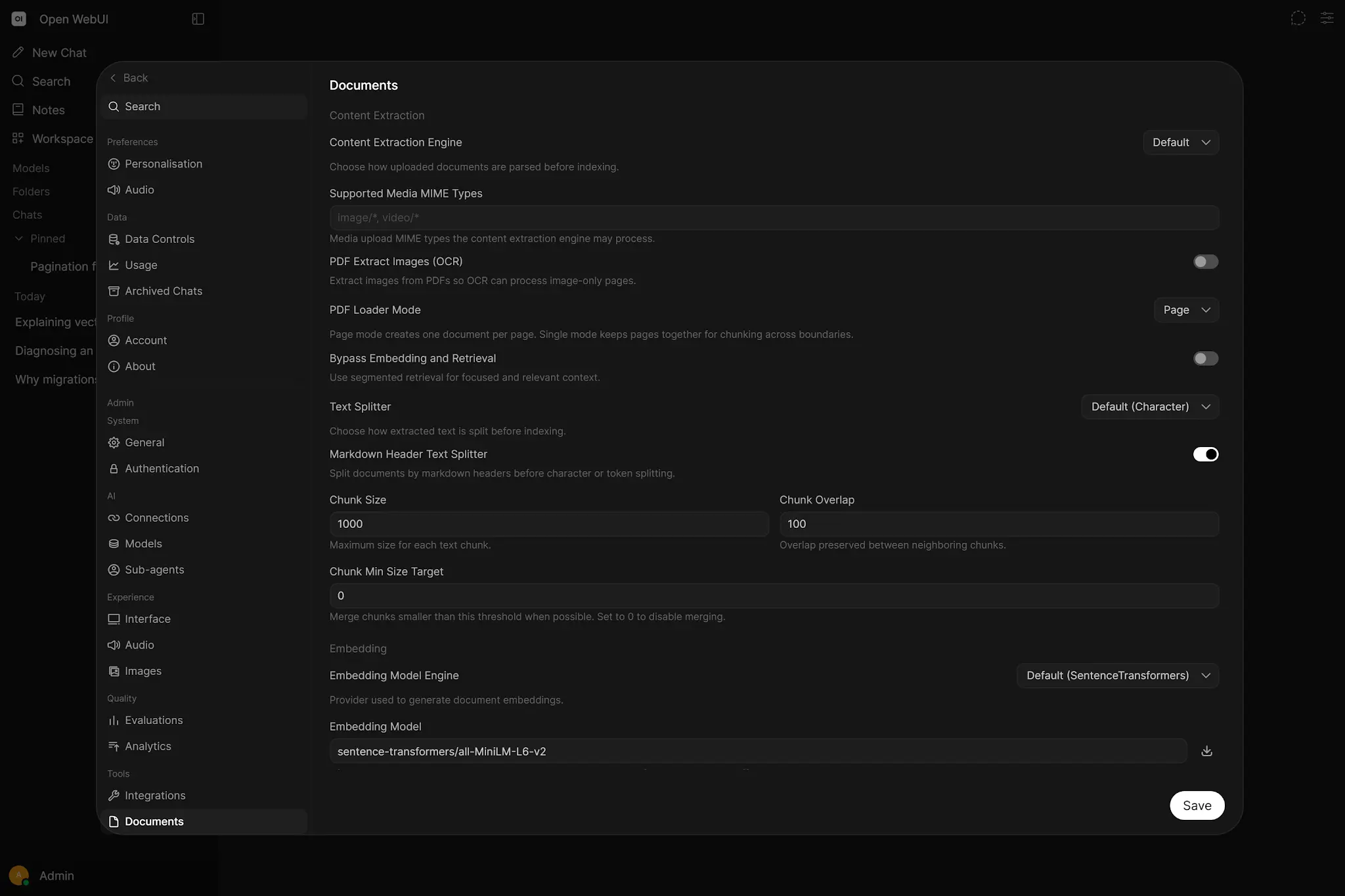

Overlap and document structure

Overlap protects ideas that cross a boundary, but also duplicates text and produces near-identical candidates. Markdown Header Splitting often gives technical documentation better semantic boundaries. A minimum chunk target can merge tiny header sections without exceeding the configured maximum.

Enlarge illustration ↗

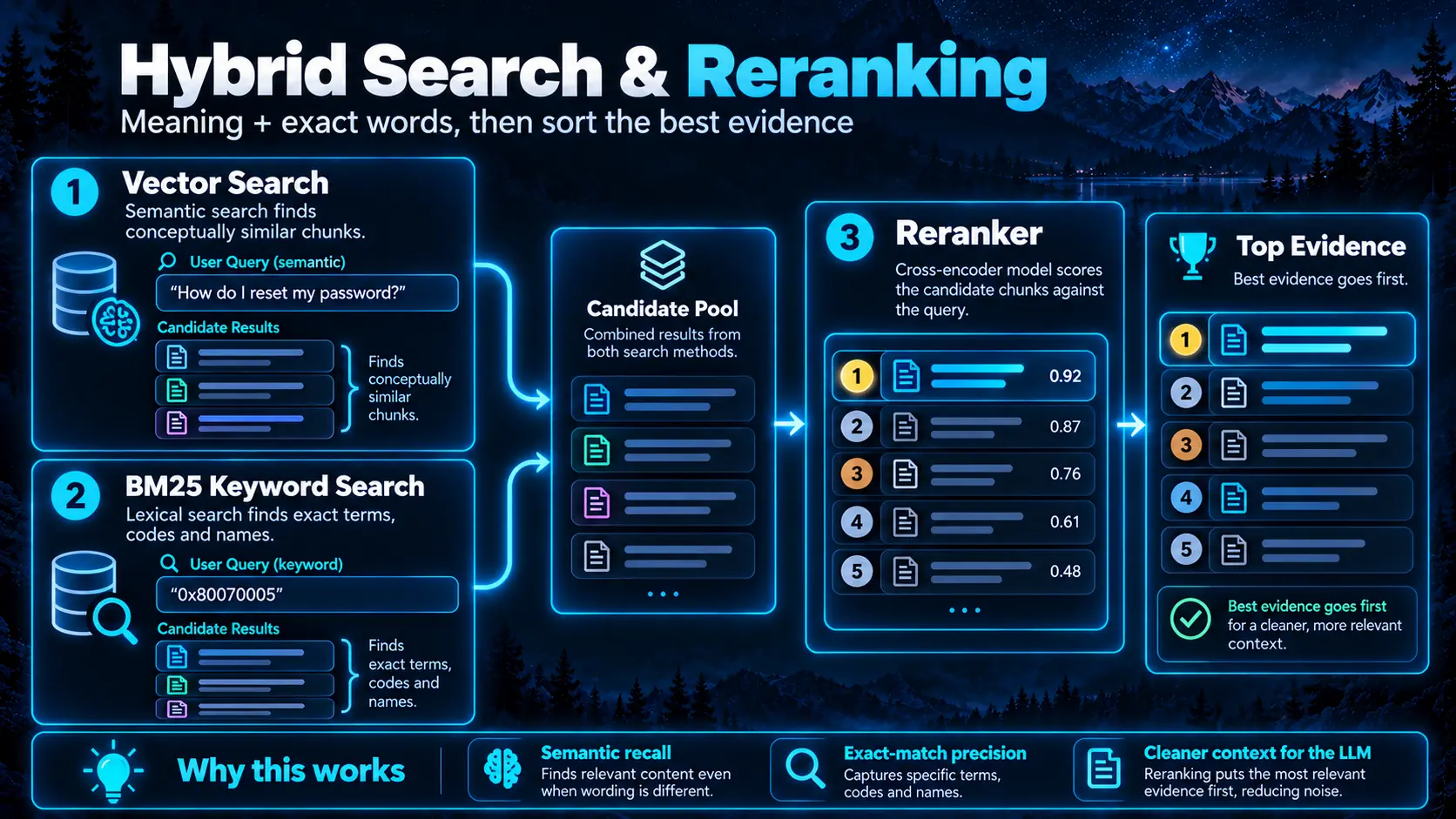

03. Hybrid Search: meaning plus exact words

Enlarge illustration ↗

Vector search finds semantic similarity. BM25 finds lexical matches. A real corpus needs both: “What does the vacation policy say?” is semantic, while “Where is 0x80070005?” is exact.

ENABLE_RAG_HYBRID_SEARCH=true
RAG_HYBRID_BM25_WEIGHT=0.5

The documented BM25 weight is a balanced starting point, not a universal optimum. ENABLE_RAG_HYBRID_SEARCH_ENRICHED_TEXTS can also add metadata such as filename, title, section and snippets to lexical search, which helps when people ask using document names or headings.

04. Reranking, thresholds and Top K

Hybrid search casts a wider net. A cross-encoder reranker reads the query and each candidate together, then scores the pair more precisely. Because that is more expensive than first-stage search, it normally operates on a limited candidate pool.

retrieve broadly → rerank carefully → keep the best evidence

RAG_TOP_K=3
RAG_TOP_K_RERANKER=3
RAG_RELEVANCE_THRESHOLD=0.0

These documented defaults are conservative values for modest hardware, not quality targets. Top K is a context budget: too low loses supporting passages; too high invites noise. A relevance threshold can remove weak candidates, but an aggressive threshold can also discard the only useful passage.

05. The context budget

system prompt + chat history + retrieved chunks
+ tool results + answer budget ≤ context window

Raising Top K can appear to do nothing if the model’s effective context cannot hold the additional chunks. More available context also does not guarantee better reasoning: 128K of mostly irrelevant material can perform worse than a precise 8K evidence set.

Full Context remains valuable for a short, always-relevant document because it eliminates selection risk. For a large library, selective retrieval is mandatory. Choose on document size and question behaviour, not on the assumption that one mode is inherently more advanced.

06. Embeddings, reindexing and vector consistency

The embedding model defines the mathematical space occupied by every stored chunk. After changing that model, query vectors and old stored vectors are no longer comparable in a meaningful way.

Reindex does not reopen the original PDF or repeat OCR. If a new extractor is meant to repair bad text, re-upload the file. Standalone chat attachments also are not rebuilt by the Knowledge Base reindex operation and must be uploaded again.

07. Agentic retrieval, grep and kb_exec

Enlarge illustration ↗

Native function calling lets the model decide what to search, retry with another query and open specific files. Use query_knowledge_files for meaning and grep_knowledge_files for identifiers, versions or exact strings.

With experimental ENABLE_KB_EXEC=true, the model can use a filesystem-like interface with ls, tree, grep, cat, head, tail, find, wc and pipes.

Agentic retrieval is not automatically more accurate. The model can formulate a poor query, choose the wrong tool or misread an empty result. Full Context also differs from indexed Knowledge: injected full text does not behave like content stored for query_knowledge_files.

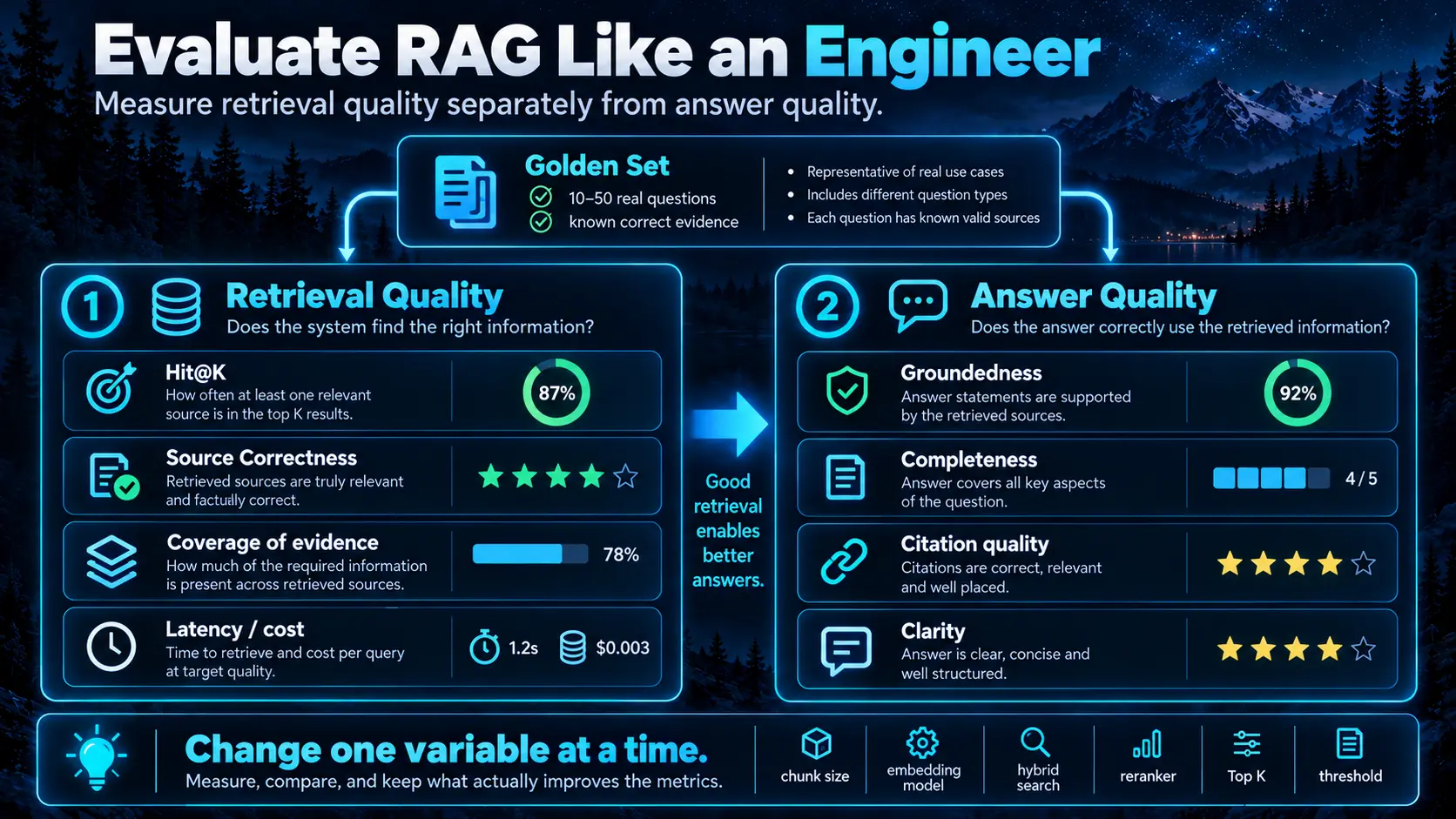

08. Evaluate RAG like an engineer

Enlarge illustration ↗

“It seems better” is not a test. Build a golden set of 10–50 real questions. For each, record the expected source document and passage. Include semantic questions, exact identifiers, ambiguous and multi-document cases, plus questions whose answer is absent.

Retrieval Hit@K

Does at least one correct chunk appear among the first K results?

Source correctness

Does the retrieved text actually support the answer rather than merely share words?

Groundedness

Does the response stay inside the supplied evidence?

Completeness

Does it include every necessary condition or supporting passage?

Citation quality

Do citations point to the chunks that support each claim?

Latency and cost

How much time and compute do embeddings, reranking, retrieval and generation add?

Change one variable at a time. Chunk size, overlap, embedding model, Hybrid Search, reranker, threshold and Top K interact; changing five at once destroys causal evidence.

Enlarge illustration ↗

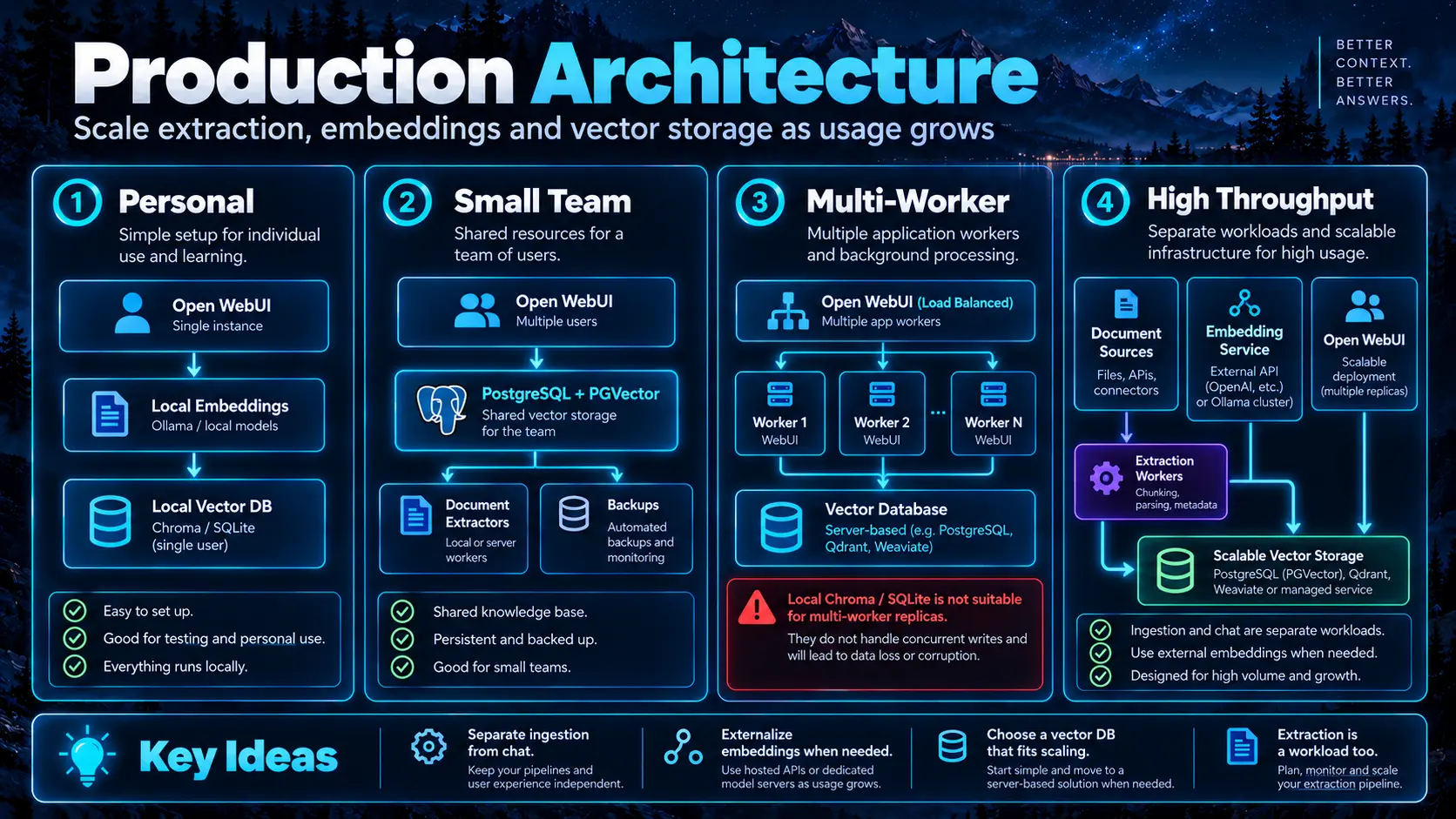

09. Production architecture

Enlarge illustration ↗

Local SQLite-backed Chroma is not safe as a shared store for multiple Uvicorn workers or replicas. Extraction also consumes memory and CPU, and a local SentenceTransformer may be loaded once per worker. Externalising embeddings avoids duplicating that model across every process.

10. External Knowledge Sources

Open WebUI can query a vector database you already operate instead of reingesting its documents. The documented experimental providers include Qdrant, Milvus and pgvector. Your infrastructure remains responsible for documents, embeddings and indexing; Open WebUI performs live retrieval.

The query embedding model and vector dimensions must match the ones used to build the external index. Otherwise similarity scores have no useful meaning. Map content, title, URL, document ID, page, metadata and score fields deliberately, then use the interface’s real test query before saving.

11. A practical tuning playbook

1. Open stored text. If extraction is wrong, change the extractor and re-upload.
2. Ask one known-answer question.
3. Open Sources and locate the expected passage.
4. If the correct file is missing, raise Top K modestly and repeat the same question.
5. If exact codes or headings matter, enable Hybrid Search.
6. If strong evidence is buried, add a reranker or calibrate the threshold.
7. If an answer crosses boundaries, adjust chunk size, overlap or structural splitting.
8. If Top K changes nothing, inspect the effective context window.
9. Reindex after chunk or embedding changes; re-upload after extractor changes.
10. Only then change the chat model if correct evidence arrived but the answer remained poor.

12. Troubleshooting by layer

13. Essential vocabulary

Hybrid Search

Combined vector retrieval and BM25 keyword search.

Cross-encoder

A reranker that evaluates the query and candidate together.

Relevance threshold

The minimum score accepted for a candidate.

Hit@K

Whether at least one relevant item appears in the first K results.

Groundedness

How fully the answer is supported by retrieved evidence.

Reindex

Rebuild chunks and vectors from stored extracted text.

External Knowledge Source

An external vector store queried without reingesting its corpus.

kb_exec

Experimental filesystem-style Knowledge navigation and search.
