Build the
whole platform

01. From installation to platform

An installation answers “can I chat with a model?” A platform also answers which model is appropriate, which sources are authoritative, which actions are allowed, how identity flows, where evidence is kept, what happens when a service fails and who owns the decision to expand capability.

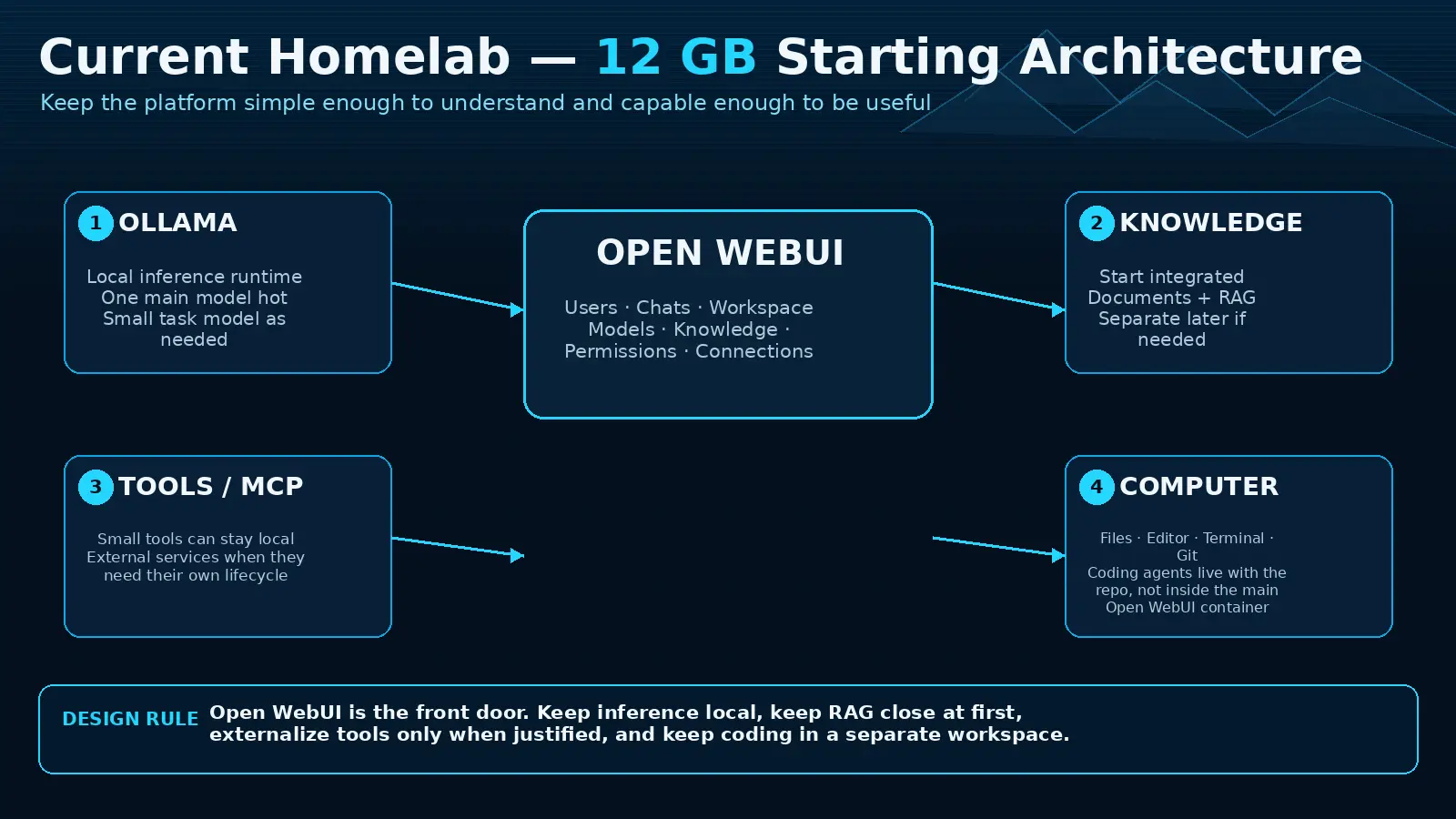

02. A realistic 12 GB starting architecture

Enlarge illustration ↗

Open WebUI

The front door for chat, assistants, Knowledge and access policy.

Ollama

The local inference runtime serving a deliberately small model portfolio.

Knowledge

Focused, owned collections close to the user experience.

Tools / MCP

External services with separate lifecycle and credentials when appropriate.

Computer

A bounded workspace for files, terminal, Git and coding agents.

Keep the first version simple enough to understand and capable enough to be useful. Do not add a new service merely because it is available.

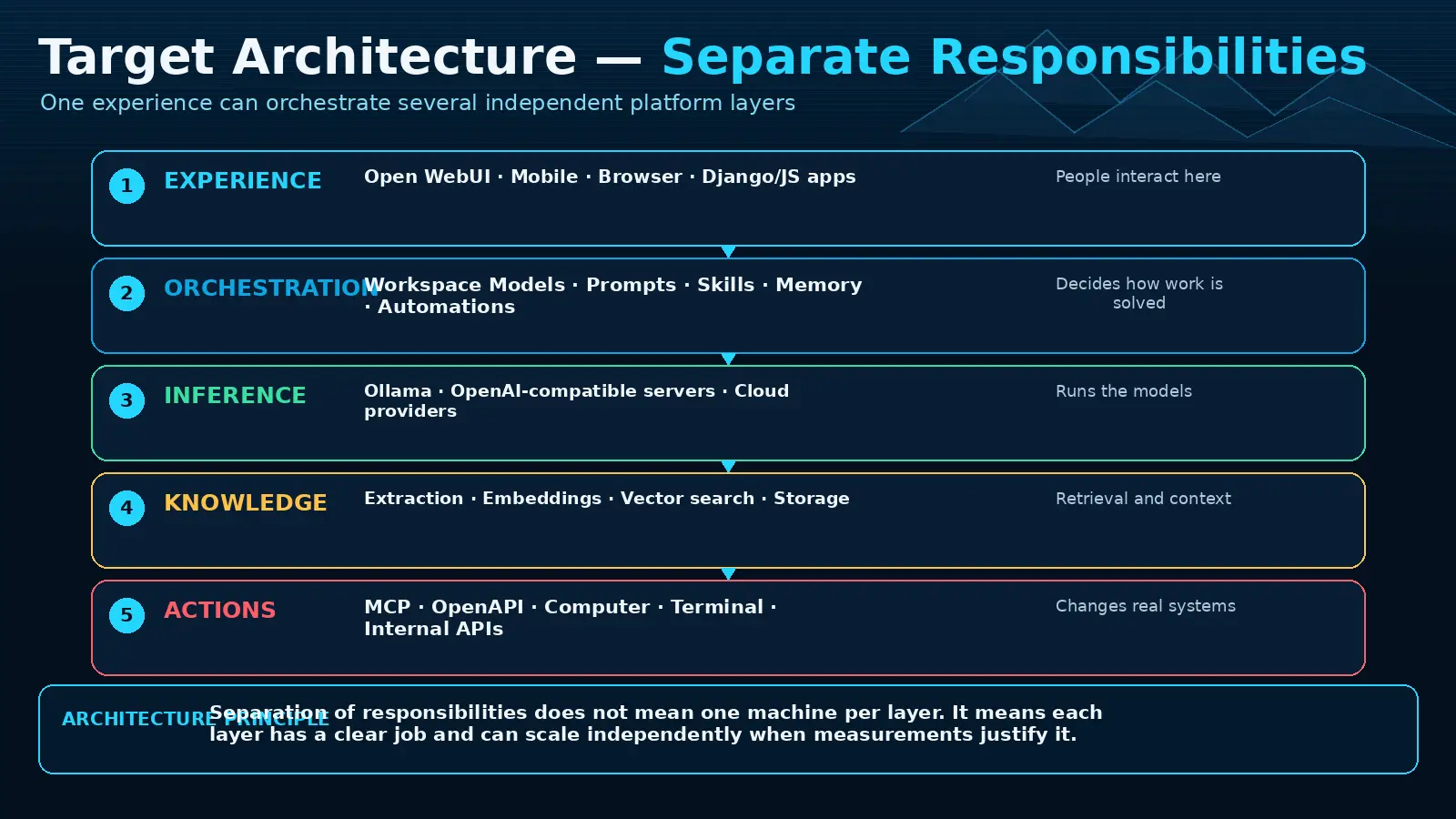

03. Target architecture: separate responsibilities

Enlarge illustration ↗

Enlarge illustration ↗

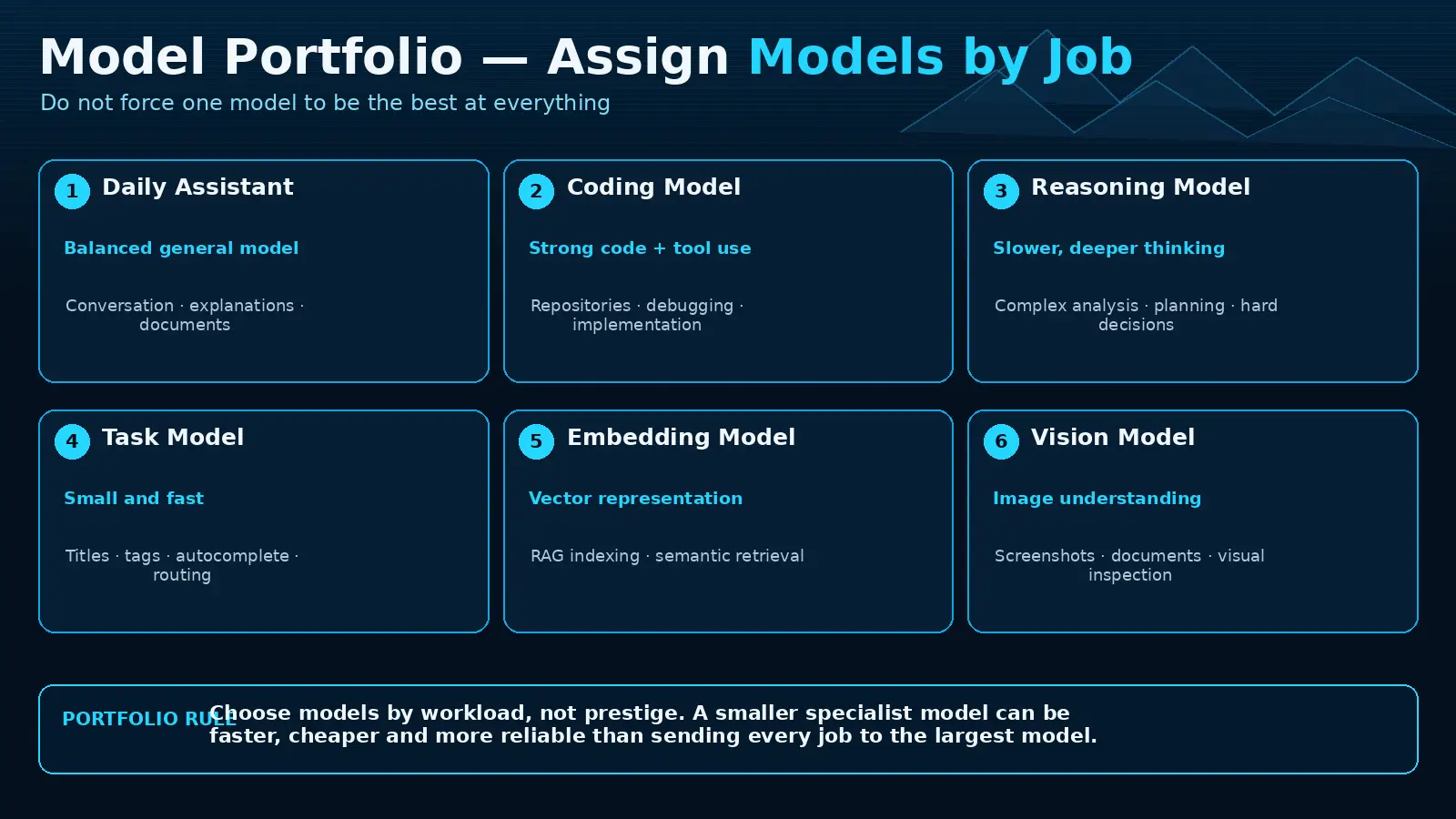

04. Assign models by job

Enlarge illustration ↗

Daily assistant

Balanced quality and speed for normal conversation.

Coding model

Repository and tool-oriented work.

Reasoning model

Hard analysis where extra latency is acceptable.

Task Model

Small fast model for titles, tags and background tasks.

Embedding model

Stable vector representation for retrieval.

Vision model

Image and screenshot understanding when required.

A 12 GB server may not host all roles simultaneously. A portfolio is a logical assignment; it can mix local and remote providers and use scheduled loading rather than permanent residency.

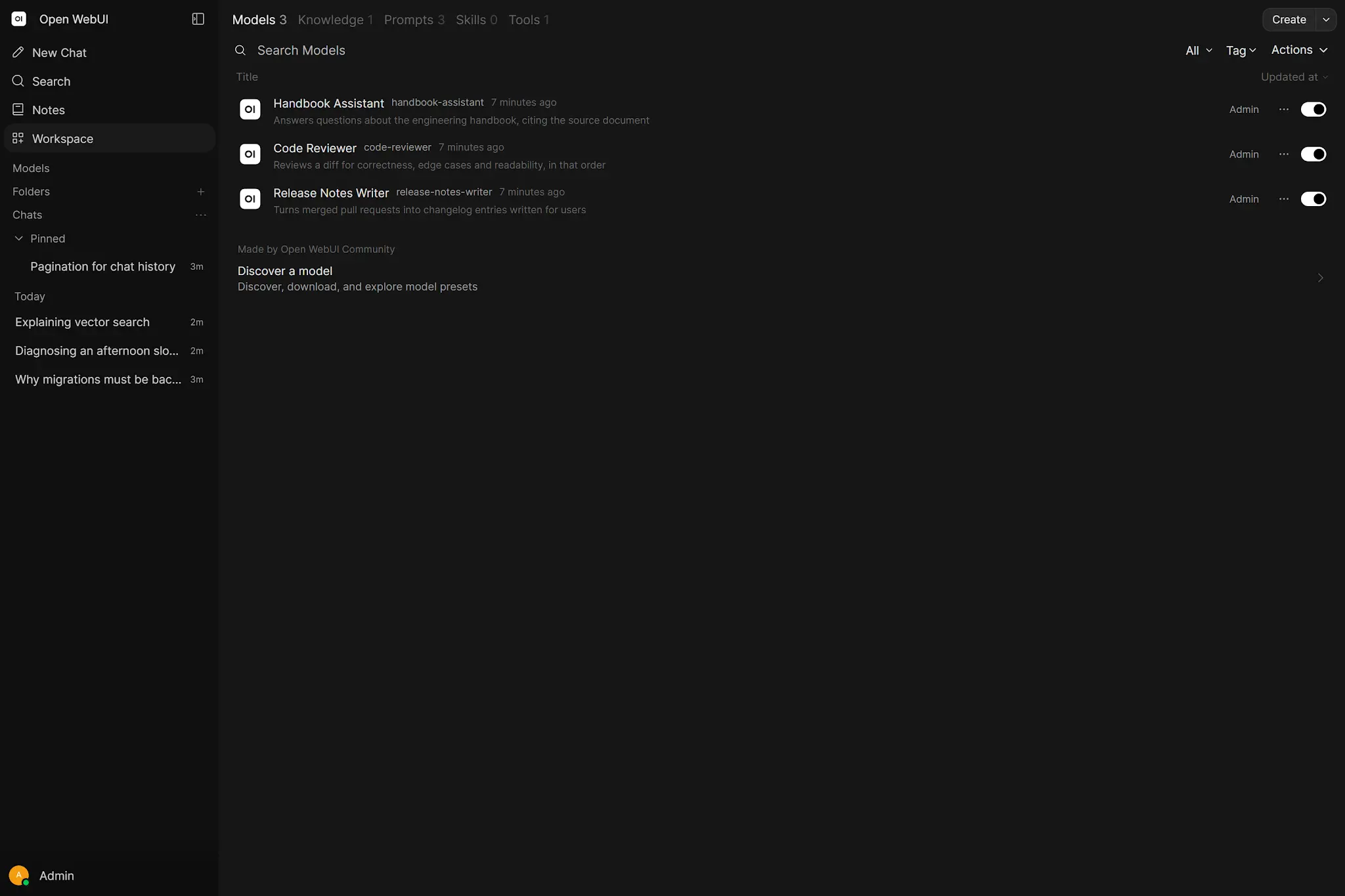

05. Workspace Models make the portfolio usable

Enlarge illustration ↗

Each preset should have a clear name, short job description, focused system prompt, chosen base model, deliberate Knowledge and Tools, sensible parameters and explicit audience.

• Daily Assistant: concise, no privileged Tools, general model.
• Document Analyst: citation rules and one approved Knowledge collection.
• Business Analyst: analysis Skill, project templates and read-only work Tools.
• Coding Agent: coding model plus an isolated Computer workspace.

Opinionated presets reduce accidental complexity. A “do everything” assistant hides authority and makes failures difficult to attribute.

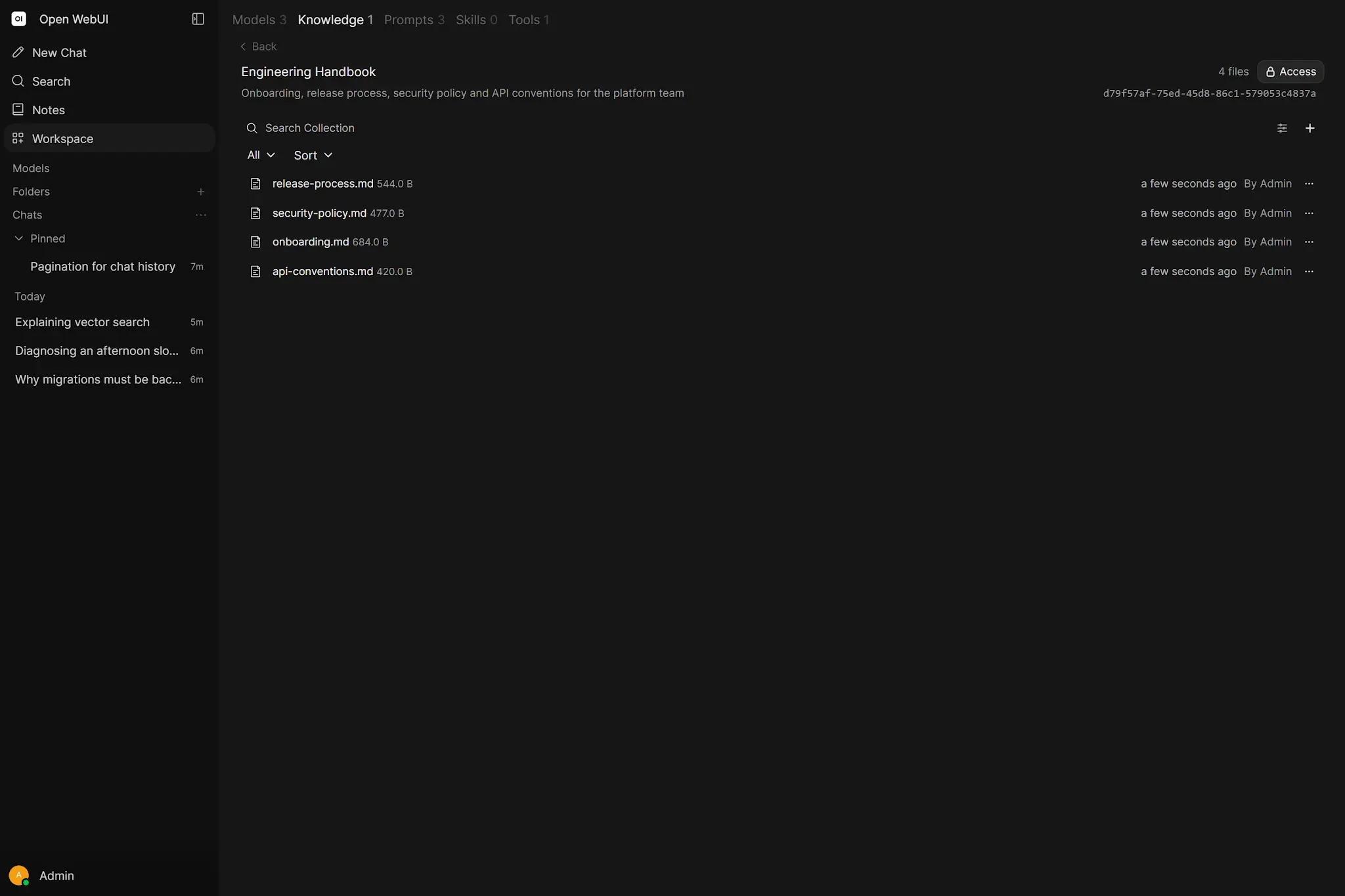

06. Design Knowledge as a source-of-truth system

Enlarge illustration ↗

Recommended collections are bounded by purpose: platform operations, active project documentation, policy/reference material and personal notes should not become one anonymous corpus.

Focused Retrieval selects passages and scales to larger corpora. Full Context is appropriate only when the complete document fits and every part matters. The index is a retrieval aid, not the authoritative document. Record where originals live, who updates them and when re-indexing occurs.

Every collection needs a small golden set of questions with known answers and expected sources. RAG belongs to evaluation, not faith.

07. Memory, Prompts and Skills solve different problems

Choose the smallest component that matches the persistence and behaviour required.

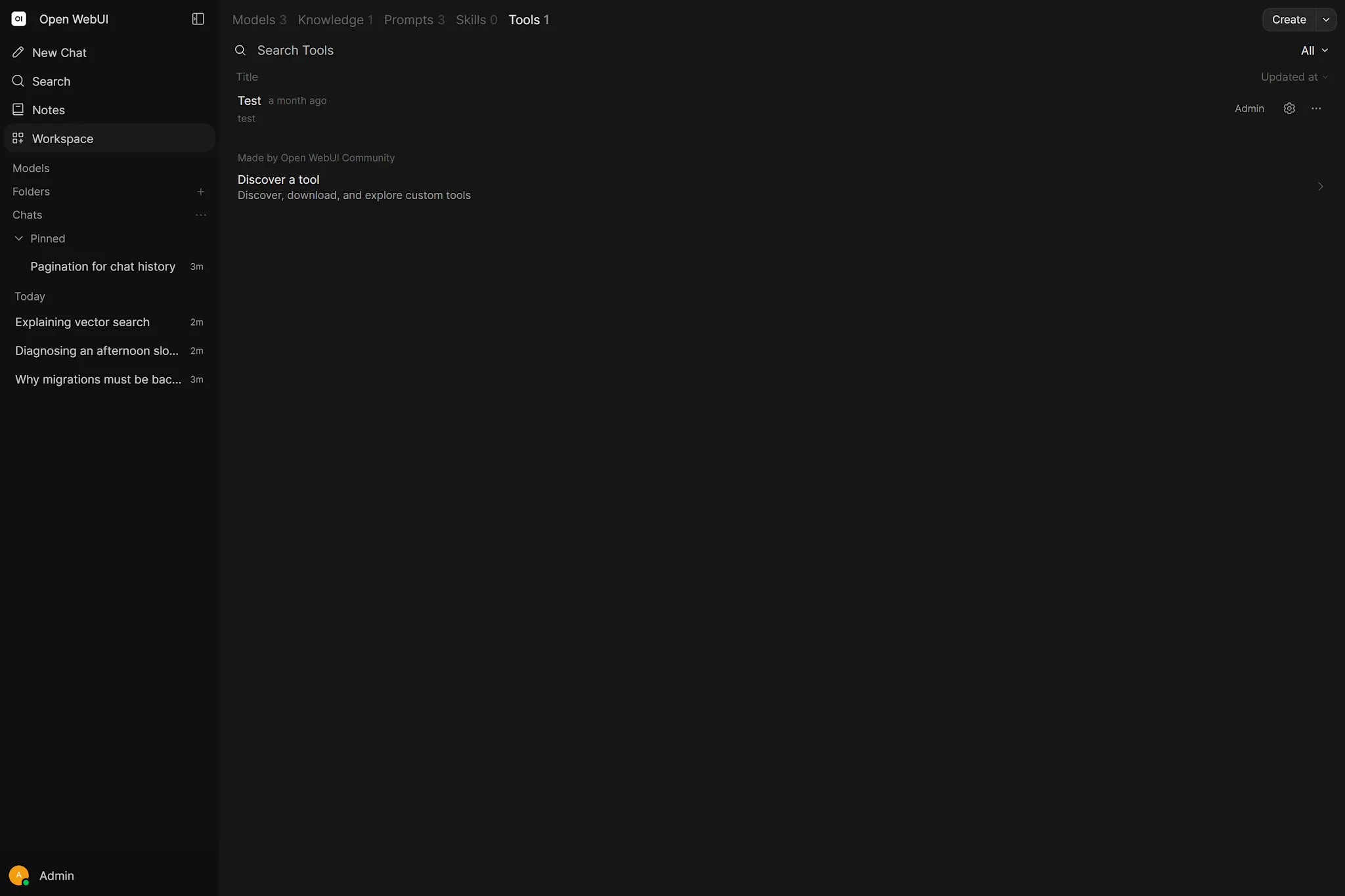

08. Tools and connectors reach live systems

Enlarge illustration ↗

Use OpenAPI first when an existing REST service already has a clear contract. Use MCP for a tool ecosystem designed for agents. Use Workspace Tools for small trusted extensions that genuinely belong inside the application process.

Begin read-only. Prove authentication, schema quality, observability and model selection before adding write operations. Grant one narrow credential per integration where possible and make every connector easy to disable.

For every operation, define the business owner, data classification, expected latency, retry safety and audit evidence. A technically healthy connector without ownership becomes an invisible production dependency.

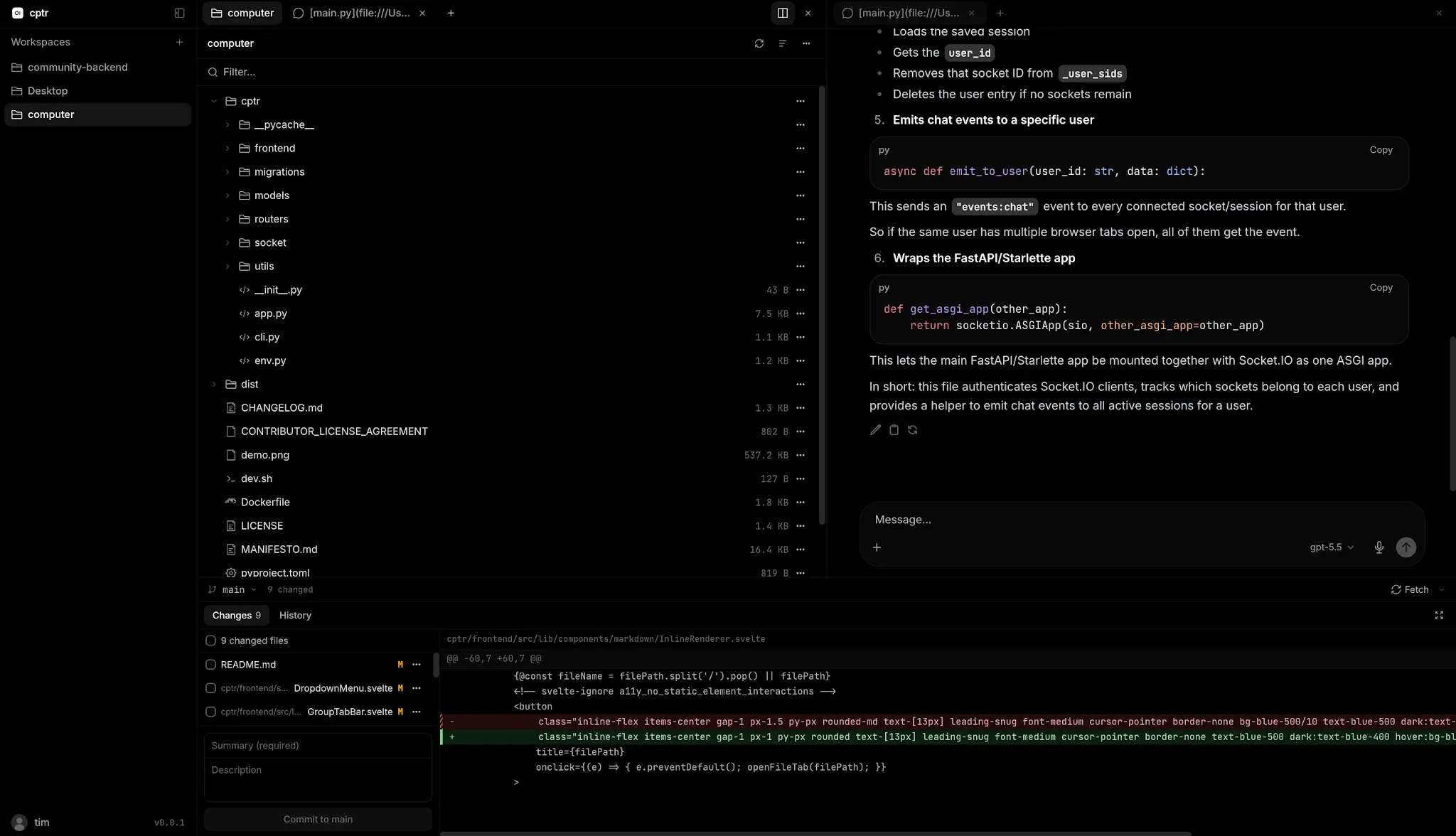

09. General agents and coding workspaces

A general agent reasons over a goal and calls bounded Tools. A coding agent additionally needs a persistent repository, filesystem, terminal, tests and Git. Do not confuse chat capability with safe operating authority.

Enlarge illustration ↗

For parallel work, give each task its own worktree or checkout and branch. Decompose by independent files and contracts; shared mutable state is not useful parallelism.

10. Automate only stable work

Good candidates have a predictable trigger, bounded inputs, repeatable decisions, narrow side effects and inspectable outputs: daily briefs, health summaries, CI triage and document freshness checks.

If the manual process changes every time, automation will encode ambiguity and repeat it faster. Stabilise the human workflow, then schedule or expose it to a webhook.

Promote autonomy in stages: manual execution, a human-triggered Action, scheduled read-only work, notification-only response and finally a narrowly defined remediation. Each stage keeps the evidence and rollback of the previous one.

11. Treat Open WebUI as an internal AI platform API

A custom Django service can call Open WebUI for model resolution, RAG and Tools while owning its own interface and business data. Keep shared API keys in the backend and map product users to explicit permissions.

browser → Django product boundary
        → Open WebUI platform API
        → model / Knowledge / Tools

This makes the web app replaceable without duplicating every AI integration, and makes providers replaceable without rewriting the product UI.

The service account should expose only the model, Knowledge and Tool set the product requires. Django still authenticates its own users and applies business rules; one shared upstream key must not silently turn every product user into the same administrator.

12. Define trust tiers

1. Conversation: model can answer but not act.
2. Read-only context: approved Knowledge and read-only APIs.
3. Human-approved actions: Actions with an explicit confirmation.
4. Bounded agent: isolated workspace and narrow write authority.
5. Unattended automation: pre-approved environment, idempotency and monitoring.

Movement upward should require evidence, an owner and a rollback path. Prompt wording alone is not a security boundary.

13. Minimum operational discipline

• Service, provider and deep functional health checks.
• TTFT, total latency, errors and queue depth.
• GPU memory, offload, disk and container restarts.
• RAG golden tests and source verification.
• Tool call failures and external dependency health.
• Backup age and last successful restore drill.

Keep an operations notebook containing versions, model digests, configuration decisions, change dates, incidents and rollback instructions. It turns future troubleshooting from archaeology into engineering.

Change one layer at a time where possible. Record the expected effect, validation and rollback before an upgrade, embedding change or permission redesign. The notebook is the bridge between architecture and daily operation.

14. Scale the bottleneck you can name

Scaling one layer can move the bottleneck elsewhere. Re-run end-to-end measurements after each change.

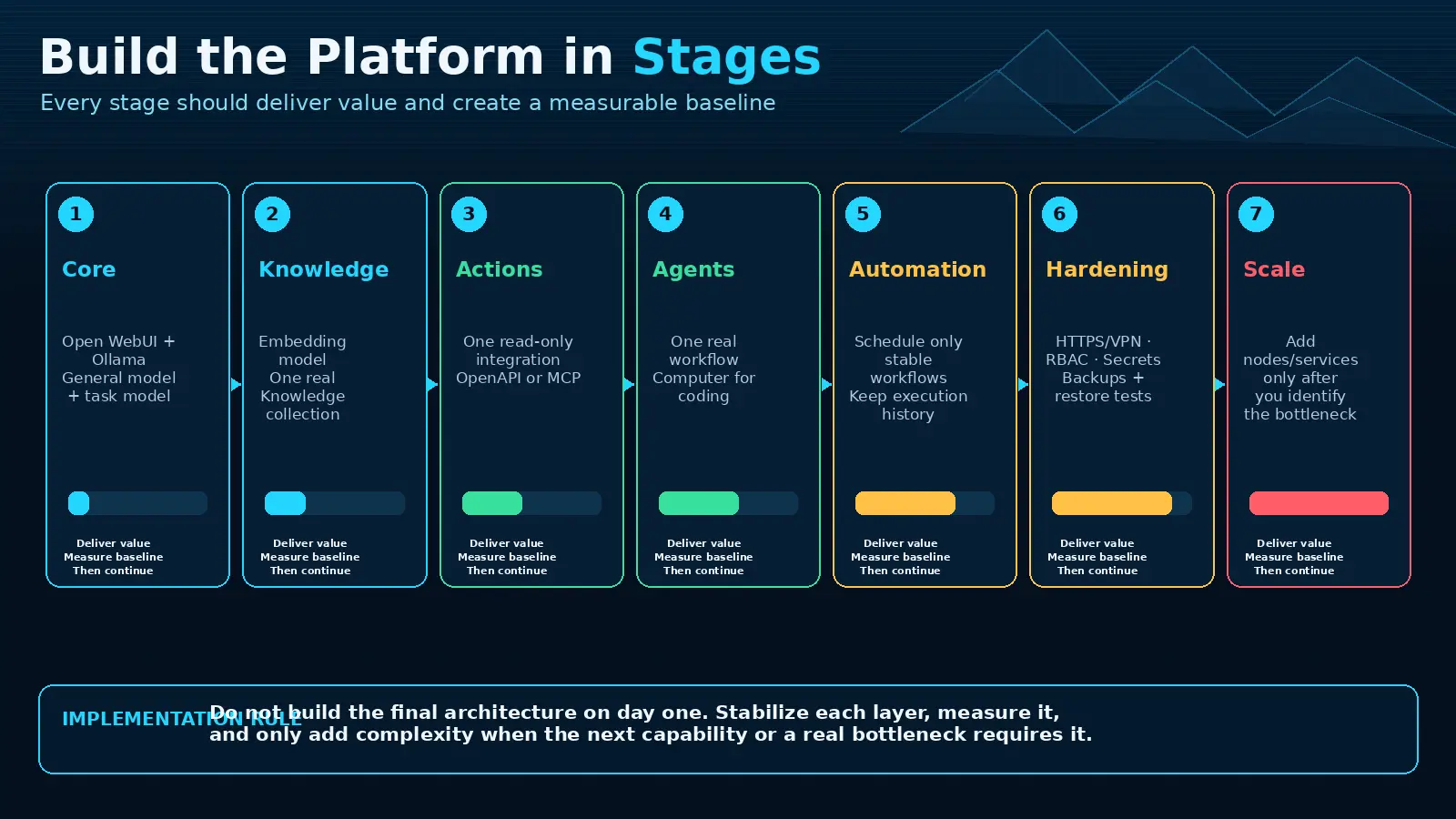

15. Build in a stable sequence

Enlarge illustration ↗

1. Core: reliable authenticated chat with a known model.
2. Knowledge: one owned collection and a passing golden set.
3. Actions: one read-only service with clear logs.
4. Agents: one bounded workspace and objective verification.
5. Automation: one proven workflow with selective notification.
6. Hardening: public path, secrets, networks, backup and restore.
7. Scale: capacity added only for a measured bottleneck.

16. Finished-platform assistants

Personal Daily Assistant

General conversation, safe preferences and no privileged Tools by default.

Business Analyst

Project Knowledge, analysis Skill and read-only ticket or reporting Tools.

Coding Agent

Repository workspace, coding model, tests, Git and supervised approvals.

RAG Researcher

Focused sources, citation requirement and an evaluation set.

Operations Assistant

Health and logs with read-only diagnosis before remediation.

17. Final architecture checklist

• Every component has one job and owner.
• Every model has a workload and resource profile.
• Every Knowledge collection has a source and test set.
• Every Tool has a credential, network boundary and disable path.
• Every agent has an isolated workspace and verification method.
• Every automation has safe failure and idempotency.
• Every public route uses the intended identity boundary.
• Every critical state has a tested restore.
• Every expansion begins from measured evidence.

A useful platform card also records version, last validation, next review, dependency owner and decommission condition. Architecture remains clear when obsolete components can be identified and removed.

18. Practical checkpoint

Create one platform card per component with its owner, inputs, outputs, secrets, permissions, monitoring signal and disable condition. Then choose the next unfinished layer and write the success test it must pass before anything else is added.

19. Essential vocabulary

Platform

A governed collection of reusable capabilities, not merely one application.

Experience layer

The interface and product workflow seen by people.

Inference layer

The runtimes that generate text, images or embeddings.

Action layer

Tools and agents able to affect live systems.

Trust boundary

A point where identity, authority or confidence changes.

Task Model

A smaller model assigned to background platform work.

Golden test set

A stable set of known cases used to compare behaviour.
