From chat
to action

01. From answering to acting

A bare language model receives context and generates tokens. Even RAG mainly improves the context it receives. A Tool changes the system: the model can request a capability outside the prompt, observe its result and continue.

Model alone → reasons with available context
Model + Tool → can retrieve live state or request an action

If you ask for ticket INC-1042, a model without a connector can only repeat known context. A model with get_ticket(ticket_id) can request the current record, receive structured data and then explain the live status.

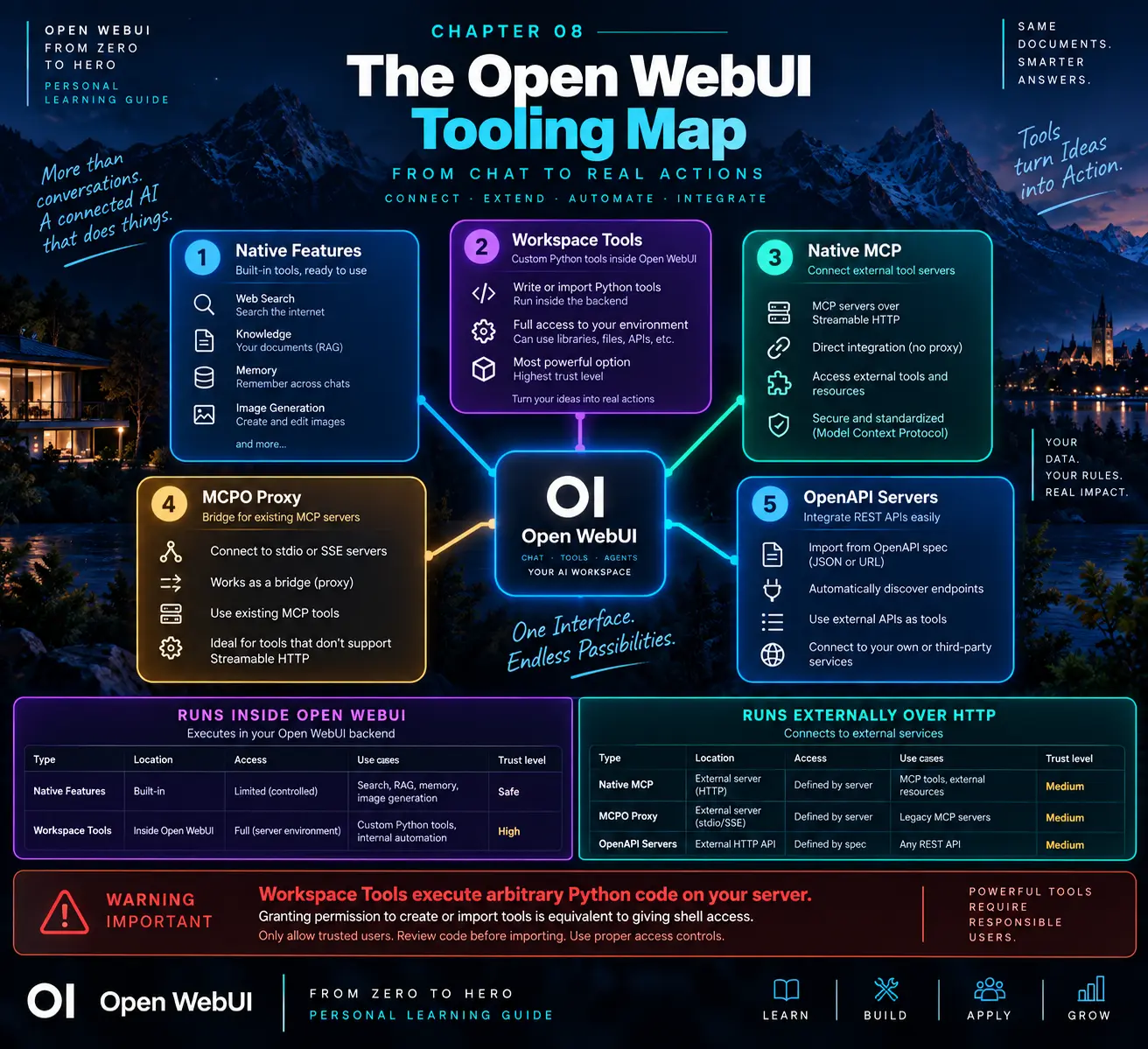

02. The Open WebUI tooling map

Enlarge illustration ↗

Native features

System capabilities such as Web Search, Knowledge, Memory and Image Generation.

Workspace Tools

Custom Python executed inside the Open WebUI backend.

Native MCP

External MCP servers connected over Streamable HTTP.

MCPO

A bridge that exposes stdio or older MCP servers through HTTP/OpenAPI.

OpenAPI servers

HTTP APIs whose documented operations become callable tools.

External services create a useful boundary: they can be isolated, scaled, authenticated and observed without installing every dependency inside the main Open WebUI container.

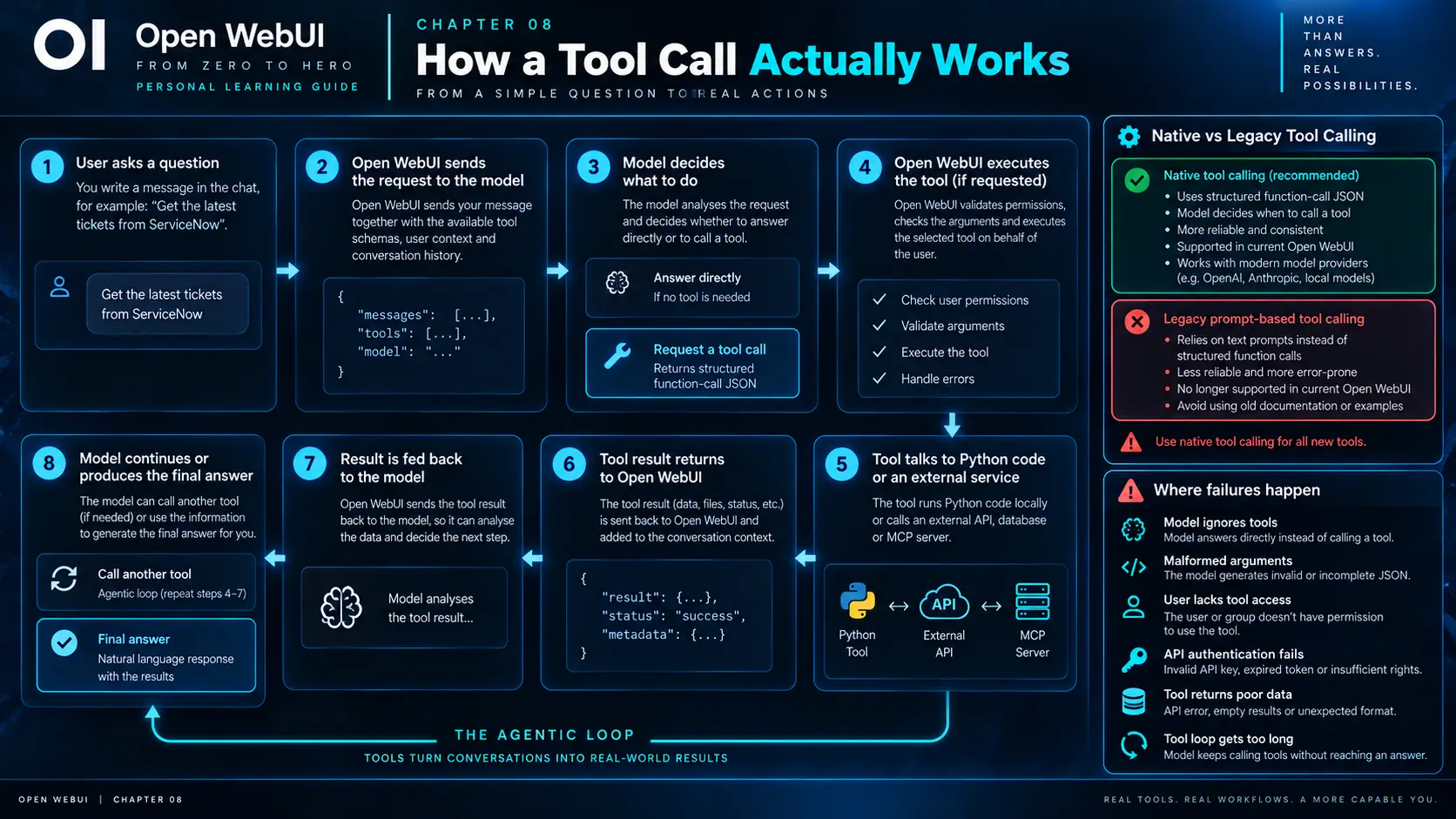

03. What really happens during a tool call

Enlarge illustration ↗

1. The user sends a message.
2. Open WebUI prepares history, context and available Tool schemas.
3. The model either answers or returns a structured tool request.
4. Open WebUI checks access and executes the named Tool.
5. The Tool result is added to the model context.
6. The model answers or requests another Tool.

The loop can continue until the model produces a final response or a configured limit stops it. This act–observe–decide cycle is the foundation of agentic behaviour.

04. Native tool calling versus Legacy

Native mode sends Tool definitions through the provider’s structured function-calling interface and receives typed calls in return. Legacy mode asked the model, through a large prompt, to imitate a Tool call in text and then attempted to parse that output.

Native mode is the supported default because it produces more reliable schemas, chains calls better, preserves KV-cache reuse and enables modern built-in capabilities.

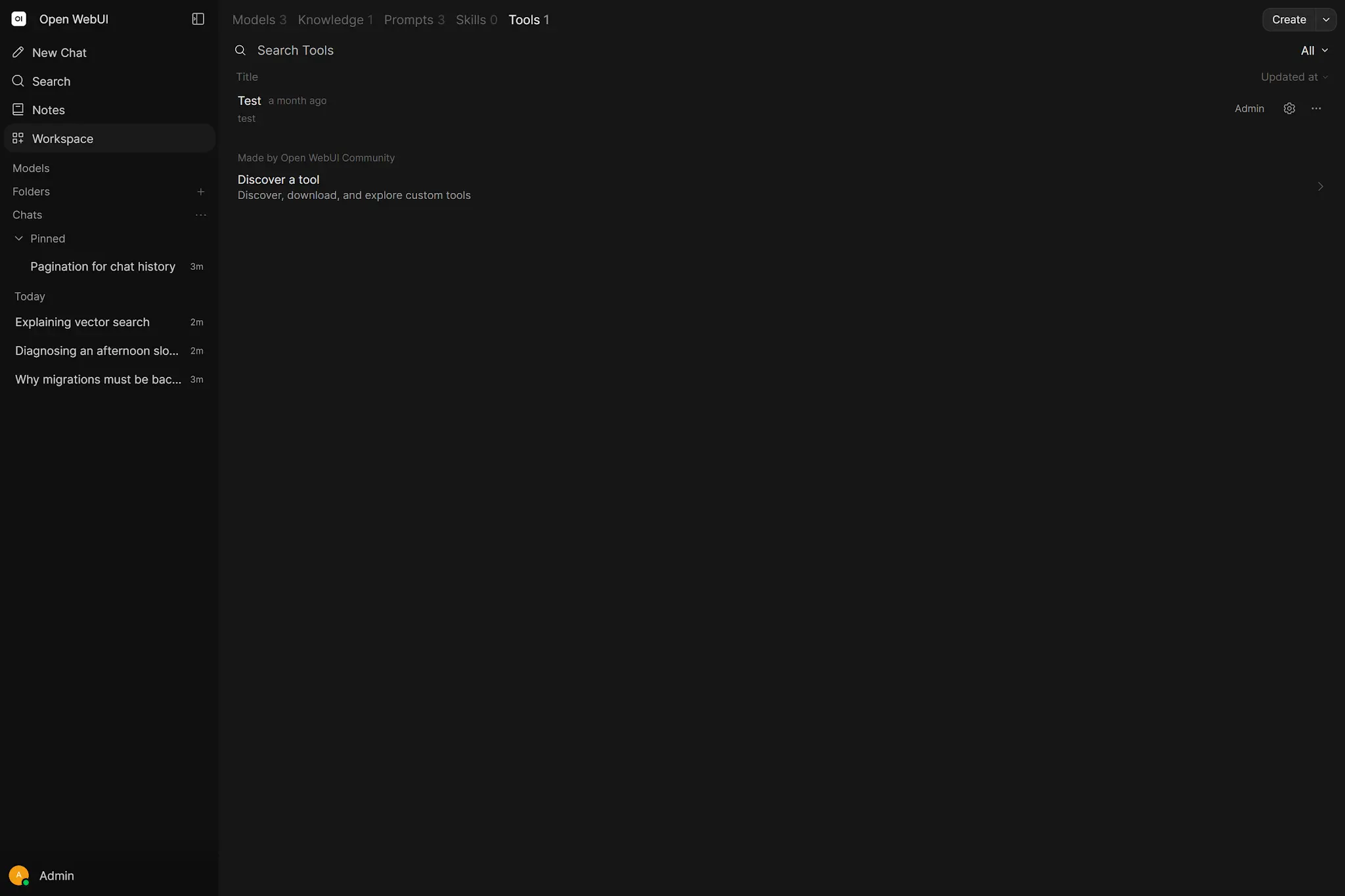

05. Workspace Tools: Python inside Open WebUI

Enlarge illustration ↗

A Workspace Tool is a Python module containing a class named Tools. Its public methods become operations the model can invoke. It is convenient because no separate service is required, but the code runs with the backend’s access to files, environment variables, packages and network.

06. Read and write a Tool

"""
title: Developer Utilities
author: Victor
description: Small utilities for analysis tasks
version: 1.0.0
"""
class Tools:
    async def calculate_percentage(
        self, part: float, total: float
    ) -> float:
        """
        Calculate what percentage part represents of total.
        :param part: The portion or completed amount.
        :param total: The full amount; it must not be zero.
        :return: Percentage value.
        """
        if total == 0:
            raise ValueError("total must not be zero")
        return (part / total) * 100

The class and signature

Open WebUI looks for Tools. Method names and type hints help generate the JSON schema sent to the model. calculate_percentage communicates intent more clearly than process.

The docstring is model-facing

The description and :param fields explain when the Tool applies and what each argument means. A technically correct Tool with ambiguous documentation can be selected badly.

Prefer async for I/O

Asynchronous methods avoid blocking the backend while waiting on a network service and match the recommended direction for future compatibility.

07. Valves, UserValves and reserved arguments

Do not hardcode API keys and URLs into Tool source. Valves hold server-managed configuration. UserValves hold per-user values when each person needs independent settings.

Server-side injection can let a Tool act for the authenticated user without placing the credential in the model’s prompt. Return only the data needed for the task.

08. OpenAPI: turn a REST API into Tools

If the business capability already exists behind HTTP, do not duplicate it inside a Workspace Tool. An OpenAPI document describes operations, parameters, types and responses so Open WebUI can expose endpoints such as:

GET   /tickets/{ticket_id}
POST  /tickets
PATCH /tickets/{ticket_id}

This keeps business logic in a testable service and allows normal gateways, authentication, rate limits, audit logs, observability and deployment controls. Use unique, descriptive operationId values because they become part of the model-facing tool interface.

Why the boundary is clean

• The API can be tested without an LLM.
• Server-side validation owns the security decision.
• Dependencies and scaling stay outside Open WebUI.
• Errors use explicit HTTP status codes and structured JSON.

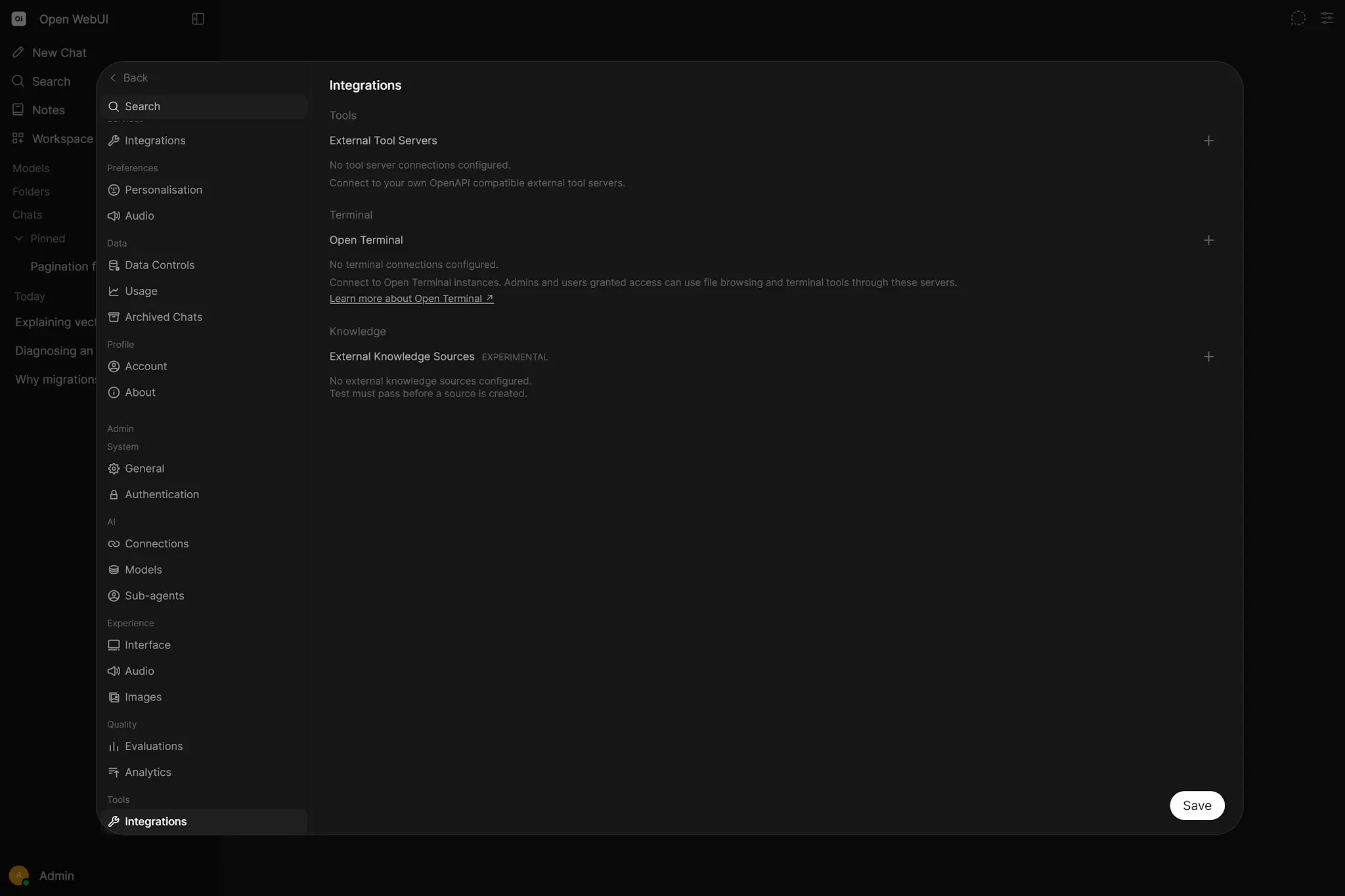

09. MCP: connect external tool servers

Enlarge illustration ↗

Model Context Protocol standardises how AI hosts discover Tools and resources. Open WebUI supports native MCP through Streamable HTTP. Administrators register servers, then access control decides which users or groups may use them.

For OAuth-backed MCP, WEBUI_SECRET_KEY protects stored client and token material. If that key changes when a container is recreated, existing encrypted credentials may become unreadable and require authorisation again.

Servers that only speak stdio cannot connect directly to the web backend; MCPO can run them and publish an HTTP/OpenAPI surface.

10. MCP, OpenAPI or Workspace Tool?

External business logic belongs behind API or MCP. Deeply internal Open WebUI behaviour may justify a Python Tool or Function.

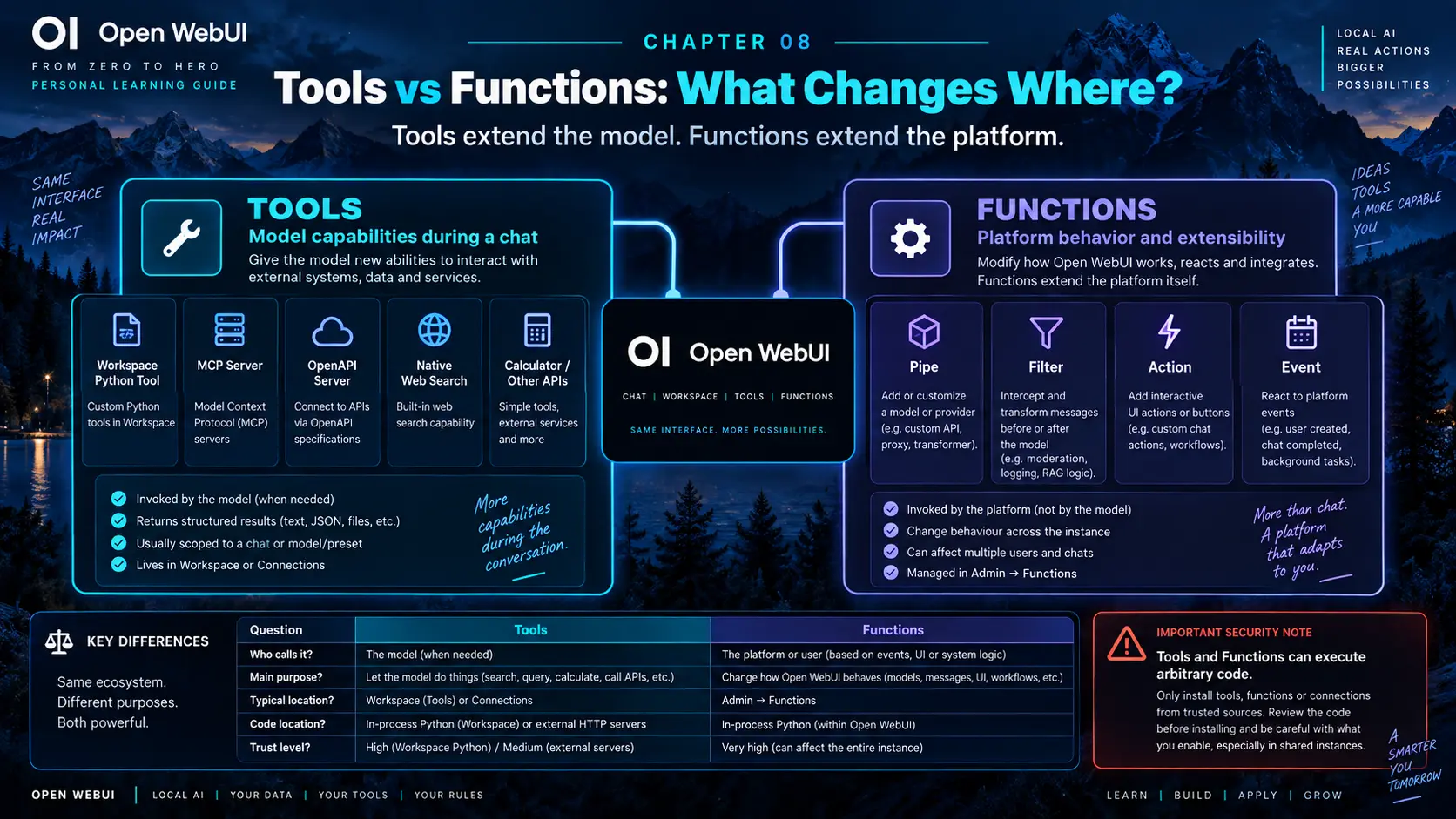

11. Functions extend the platform

Enlarge illustration ↗

Pipe

Appears as a selectable model and controls the complete request path. It can route providers or implement a specialised agent.

Filter

Intercepts input, stream or output for redaction, moderation, translation, logging, metrics or policy.

Action

Adds a user-triggered button to a message, such as export, send or start a workflow.

Event

Reacts to lifecycle events such as user creation, chat deletion, startup or configuration change.

Functions are admin-only Python. A global Filter can affect every conversation; an Event can execute automatically. Review and operate them like backend extensions, not like harmless prompt snippets.

12. Open Terminal and code execution

Open Terminal gives an agent a shell, filesystem, package environment, process management and file-search tools. Unlike Python embedded in the main backend, it can be placed in a deliberately isolated execution environment.

For development, a useful architecture is Open WebUI as control plane, a reliable tool-calling model as planner, an isolated Open Terminal container as action layer and only the required repository paths mounted inside.

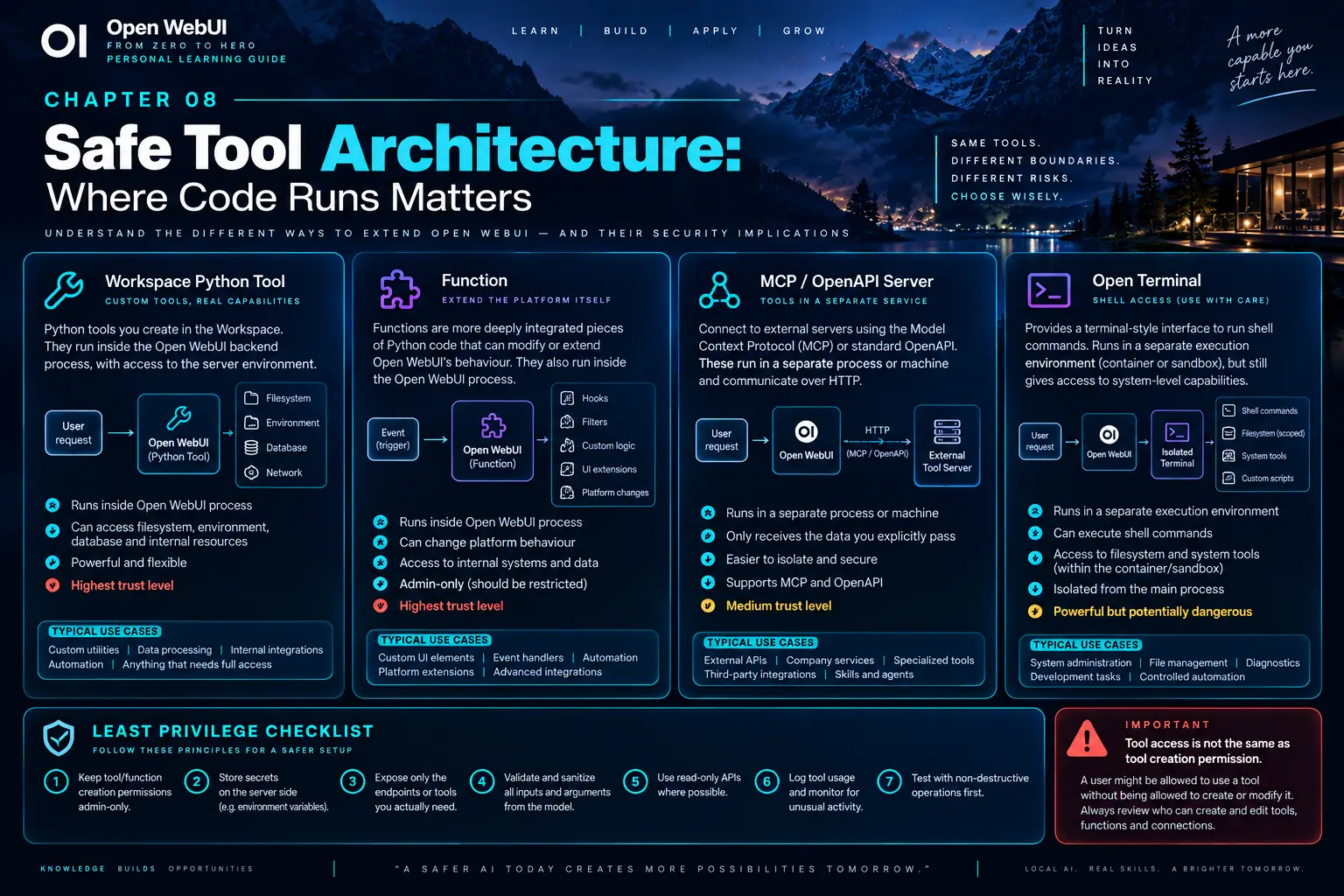

13. Security and trust architecture

Enlarge illustration ↗

• Separate permission to use a Tool from permission to create one.
• Expose only the operations an assistant needs.
• Prefer read-only endpoints before adding writes.
• Validate all values and authorisation server-side.
• Keep secrets out of prompts and Tool descriptions.
• Log sensitive calls and return small structured results.
• Isolate heavy or high-risk execution in external services.

14. Troubleshooting Tools

15. Project: a Technical Support Assistant

Assemble a small assistant with a tool-capable base model, a system policy that forbids invented live state, Knowledge containing runbooks and three read-only operations:

get_ticket(ticket_id)
get_service_status(service_name)
search_known_incidents(query)

1. Consult Knowledge for documented procedures.
2. Call a Tool only when live state is required.
3. Follow related identifiers with a second call when justified.
4. Separate current system facts from documented recommendations.
5. Grant ordinary users use access; reserve Tool creation and connection changes for administrators.

Knowledge and Tools are complementary: Knowledge supplies durable documentary context; Tools supply dynamic state and bounded actions.

16. Essential vocabulary

Tool

A capability the model can request during a conversation.

Tool schema

The structured name, description, parameters and types shown to the model.

Native tool calling

Provider-supported structured function calling.

Workspace Tool

A Python Tools class executed in the Open WebUI backend.

Valves

Persistent server-side configuration for a Tool or Function.

OpenAPI

A standard contract for HTTP APIs.

MCP

A protocol for exposing Tools and resources to AI hosts.

MCPO

A bridge that exposes MCP servers through an HTTP/OpenAPI interface.

Pipe / Filter / Action / Event

Function types that extend Open WebUI platform behaviour.
